Szczegóły Produktu

Materiał	Czysty proszek tytanu	Kształt	Okrągły
Rozmiar	dostosowane	Aplikacja	Separacja i filtracja
Próbka	dostępny	Ocena filtra	0,5um-80um
Podkreślić	Separation Sintered Porous Disc , Pure Titanium Powder Sintered Porous Filter , Metallic Powder Sintered Disc Filter

Zostaw wiadomość

opis produktu

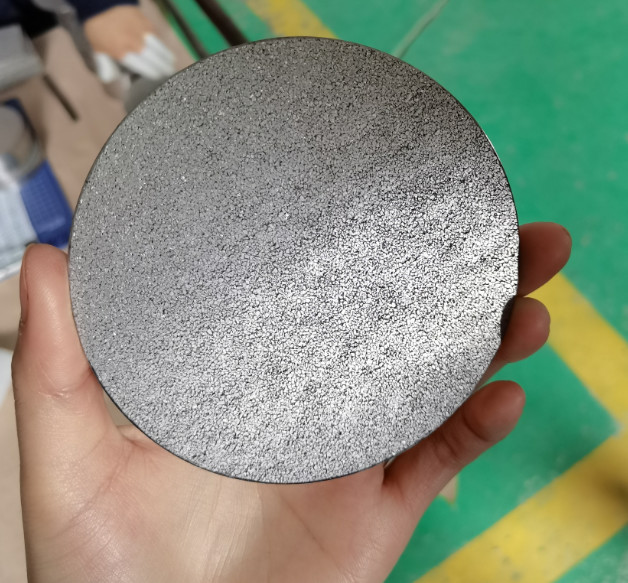

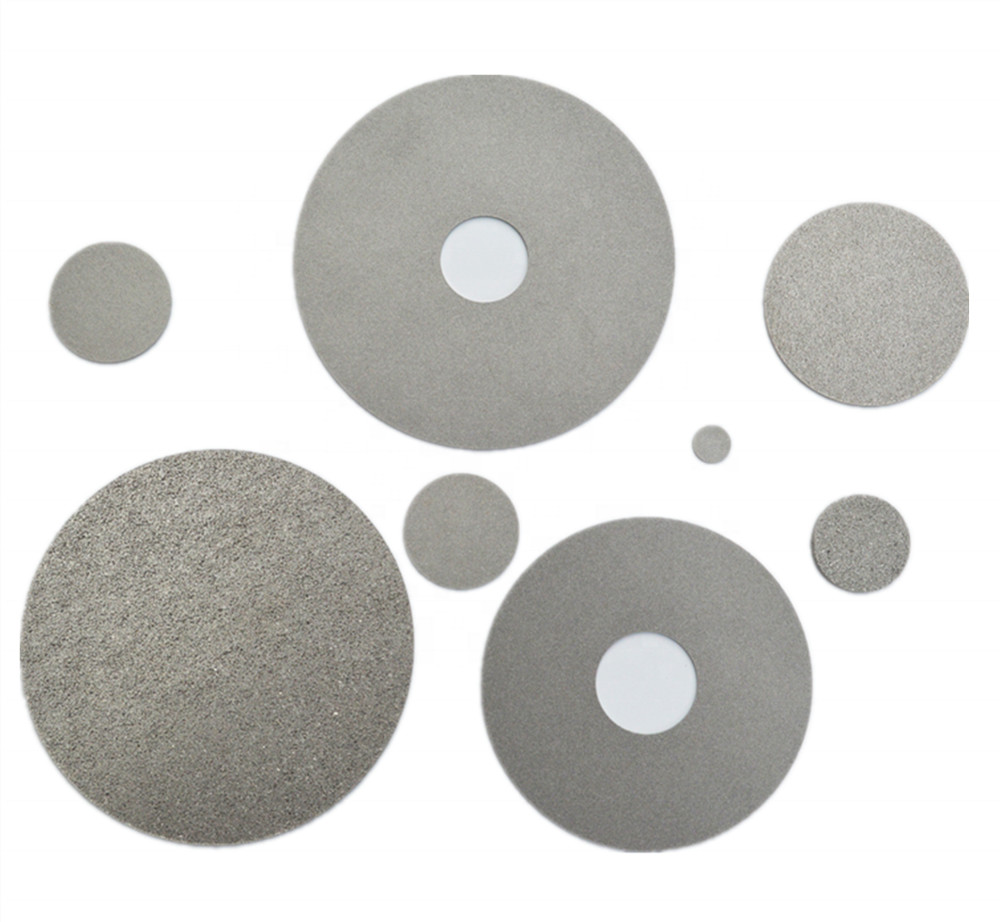

Sintered porous round discs for separation and filtration

Product Introduction

Metal powder sintered porous material is made of metal or alloy powder by forming and sintering at high temperature and with a rigid structure.

Feature: The metallic powder sintered porous material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles, the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.

Advantage: Compared with the traditional filtration materials such as paper, cotton, PP, PE, PES, PTFE, etc., the metal powder sintered porous materials have good permeability, pore size and pore control, stable shape, high filtration accuracy, wear resistance, good mechanical properties, good heat conduction, heat resistance and heat dissipation, and can be repeatedly washed and used for many times.

Specification of titanium sintered porous materials

Production	Diameter/Length	Diameter/Width	Thickness	Customized
Sintered porous round discs	Max Dia φ500mm	Max Dia φ500mm	0.5-30mm	Yes
Sintered porous sheets	Max 800mm	Max Width 320mm	0.5-30mm	Yes
Sintered porous tubes	Single Max Length 1200mm	Max Diaφ200mm	2-10mm	Yes

Features of titanium sintered porous materials:

Material	FilterRating	Porosity	Penetrability	Working pressure	Operating temperature	Shape	specific surface area
Pure Titanium powder	0.5um-80um	25-45%	3-800M³/M²hKPa	2.5MPa	300℃	Round disc,sheet,tube,round bar,cap	10-40cm²/cm³
